Door Surgeon Commercial Overhead Garage Door Opener Repair Sherwood Park
Sherwood Park Mobile commercial garage door opener repair, fix, adjust. Commercial garage door opener replacement
Door Surgeon Sherwood Park stocks commercial door openers that are made to last. Door Surgeon's commercial garage door opener serviceman will come to your broken commercial garage door operator and fix, repair, adjust your commercial garage door operator or install a new overhead commercial garage door opener.
It's time to get Sherwood Park Door Surgeon's commercial garage door opener servicemen working for you. Door Surgeon offers emergency commercial garage door opener repair, fix, adjustment or new commercial overhead garage door opener installation service.
The following commercial series overhead garage door openers, provided by Door Surgeon's Sherwood Park mobile servicemen, will repair, fix or adjust any of the following brands: Liftmaster, Manaras, Doorlec, Genie, Lynx, Overhead Door Co., Wayne Dalton, Rytec, Raynor, Mighty Mule, Lawrence, Micanan, Grifco, Linear, Guardian, Zap Motors, Cookson, Cornell, Kinnear, Miller Edge, Besam Assa Abloy, Entrematic, Power Master, Chain Hoist, Garaga, Zhejiang Xianfeng, Link Controls, Sommer, Richard Wilcox & Somfy commercial overhead garage door openers.
Whether you are looking for a repair or commercial/industrial overhead door opener replacement, Door Surgeon's sales and service parts counter has you covered with commercial overhead door openers that are explosion Proof, Water Proof, NEMA 4, NEMA 7/9 overhead garage door openers.

Manaras New Overhead Commercial Garage Door Openers supplied and installed in Sherwood Park:

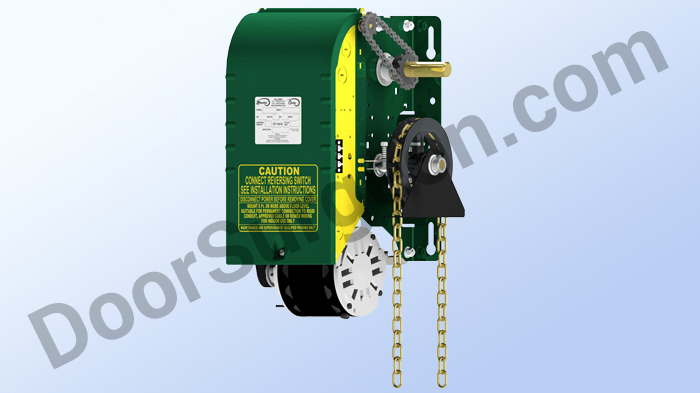

OPERA MH
New 1/2 HP Commercial / Industrial Medium Duty Jack Shaft Commercial Overhead Door Opener Supplied and Installed Sherwood Park

Standard Features
Commercial door openers that get the job done. This Opera MH 1/2 HP over head door operator is made to last.
Commercial Garage Door Opener Motor Sherwood Park
1/2 HP, 115V single phase intermittent-duty motor with instant reverse and internal automatic reset thermal overload protection. Removable without affecting limit switch settings. Also available with 50Hz motor.
Reduction
First step in reduction 5L/B V-belt drive, additional steps by chain and sprockets. Input shaft is 5/8", supported by precision ball bearings. Output shaft is 1" with 1/4" keyway, supported by ball bearings. Output shaft speed: 36 rpm.
Clutch
Friction type, positioned on input shaft, easily adjustable from outside.
Drive
#41 roller chain with a 41B12 sprocket for the operator drive shaft. Door sprocket selected for a door travel of 6"/s to 12"/s.
Brake
Mechanical Brake.
Sherwood Park Commercial Door Manual Operation
Hoist-a-matic self-engaging hoist (floor level engagement device is not required to operate) for manual chain operation. An electrical interlock automatically disconnects power to the motor operator when chain hoist is engaged. Hoist on right is standard.
Electrical Enclosure
All electrical components are in a Nema 1 enclosure. Hinged electrical enclosure cover.
Limit System
Rotary-type oil-impregnated steel cams, commercial grade switches. Limit shaft is supported by self lubricating bronze bushings for increased precision. Remains in time when there is a manual operation or after the motor has been removed.
Accu-cam Feature
Precise and quick one-handed adjustment of the limits.
Corrosion Protection
Frame and control enclosure protected by baked on, long lasting enamel finish. Polymer control box cover. All shafts protected by yellow chromate coating.
Commercial Door Opener Mounting Sherwood Park
Wall, hood, or shelf mounted on the right or left side of the door.
Sherwood Park Commercial Door Opener Control Options
24VDC relaying circuit with a 40VA class II transformer, non-volatile memory. Features available:
- 1.5s delay on reverse
- Programmable maximum run timer
- Mid-stop
- Timer to close (suspension possible from floor level)
- Independent input loop terminal
- Advanced close system
- Test buttons
- Reverse wiring detection
- Door lock sensor
Operating mode selectable on site: C2, B2, D1, E2, T or TS
Commercial Door Opener Control Accessories Sherwood Park
Angled terminal strip allows for the connection of 3-button stations (one supplied with the operator), non-monitored sensing edges, non-monitored photo cells, one push-button radio control (external strip), ceiling pull switches, key switches, loop detectors, external interlocks, plug-in radio card and universal auxiliary output module. 2A fuse protected 24VAC output is available for accessory power supply. NEMA 4/12 or NEMA 4X protected monitored photo cells upgrade available.
Sherwood Park Commercial Door Opener Mechanical Accessories
Wall or hood mounting bracket, chain spreader, etc.
For more options contact Door Surgeon at 780-448-9498.

Cycles | Ideal For | Clearance / Side Room Required | Max Door Height |
14 cycles / hour | Standard Lift | 15" | 14' |
(50 cycles / day) | (380mm) | (4200 mm) |
Operator Range and Current Consumption (Amp)
Horse Power | 115V - 1 HP |
1/2 | 5.0 |

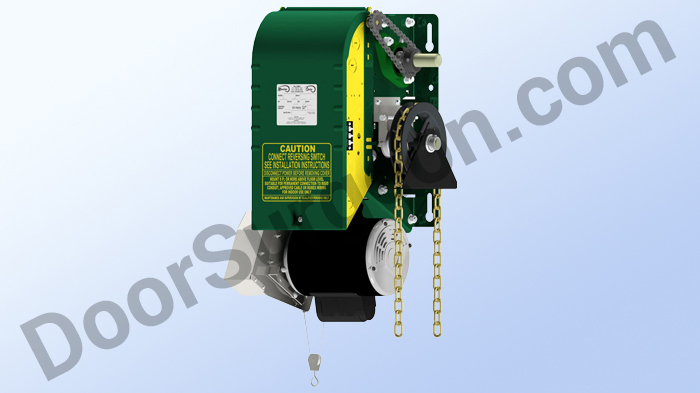

OPERA SH
New 3/4 HP Commercial / Industrial Heavy Duty Jack Shaft Overhead Door Opener w/ Solenoid Brake Supplied and Installed in Sherwood Park

Standard Features
Commercial door openers that get the job done. This Opera SH 3/4 HP over head door operator is made to last.
Commercial Door Opener Motor Sherwood Park
60Hz high starting torque, continuous-duty, single phase capacitor start or 3 phase motor, open drip proof, protected againsr overload. Also available with 50Hz 220V 1 phase and 380V 3 phase motor.
Reduction
First step in reduction 5L/B V-belt drive, additional steps by chain and sprockets. Input shaft is 3/4", supported by precision ball bearings. Output shaft is 1" with 1/4" keyway, supported by cast iron flanged pillow block bearings. Output shaft speed: 41 rpm.
Clutch
Friction type, positioned on input shaft, easily adjustable from outside.
Drive
#50 roller chain with a 50B12 sprocket for the operator drive shaft. Door sprocket selected for a door travel of 6"/s to 12"/s.
Brake
Mechanical Brake.
Sherwood Park Commercial Door Opener Manual Operation
Hoist-a-matic self-engaging hoist (floor level engagement device is not required to operate) for manual chain operation. An electrical interlock automatically disconnects power to the motor operator when chain hoist is engaged. Hoist on right is standard.
Electrical Enclosure
All electrical components are in a Nema 1 enclosure. Hinged electrical enclosure cover.
Limit System
Rotary-type oil-impregnated steel cams, commercial grade switches. Limit shaft is supported by self lubricating bronze bushings for increased precision. Remains in time when there is a manual operation or after the motor has been removed.
Accu-cam Feature
Precise and quick one-handed adjustment of the limits.
Commercial Door Opener Corrosion Protection Sherwood Park
Frame and control enclosure protected by baked on, long lasting enamel finish. Polymer control box cover. All shafts protected by yellow chromate coating.
Sherwood Park Commercial Door Opener Mounting
Wall, hood, or shelf mounted on the right or left side of the door.
ECB Units (BOARD 070) (OE):
24VDC relaying circuit with a 40VA class II transformer, non-volatile memory. Features available:
- 1.5s delay on reverse
- Programmable maximum run timer
- Mid-stop
- Timer to close (suspension possible from floor level)
- Independent input loop terminal
- Advanced close system
- Test buttons
- Reverse wiring detection
- Door lock sensor
Operating mode selectable on site: C2, B2, D1, E2, T or TS
Contactor Units (OO):
24VAC control circuit, 40VA class II transformer, fuse protected on output, heavy-duty across-the-line linear reversing contractor with mechanical interlock.
Commercial Door Opener Control Accessories Sherwood Park
Angled terminal strip allows for the connection of 3-button staions (one supplied with the operator), non-monitored sensing edges, non-monitored photo cells, one push-button radio control (external strip), ceiling pull switches, key switches, loop detectors, external interlocks, plug-in radio card and universal auxiliary output module. 2A fuse protected 24VAC output is available for accessory power supply. NEMA 4/12 for NEMA 4X protected monitored photo cells upgrade available.
Environmental Modifications
NEMA 4/12 and NEMA 4X enclosures. For NEMA 7/9 consult Door Surgeon at 780-448-9498.
Sherwood Park Commercial Door Opener Mechanical Accessories
Wall or hood mounting bracket, chain spreader, etc. For more options contact Door Surgeon at 780-448-9498.

Cycles | Ideal For | Clearance / Side Room Required |
25 cycles / hour | High Lift | 16" |
(100 cycles / day) | Full Vertical | (406mm) |
Operator Range and Current Consumption (Amp)
Horse Power | 115V 1 HP |
230V 1 HP |
208/230V 3 HP |
460V 3 HP |
575V 3 HP |
1/2 | 8.0 | 4.0 | 2.1 | 1.0 | 8.0 |
3/4 | 11.2 | 5.6 | 3.2 | 1.5 | 1.2 |

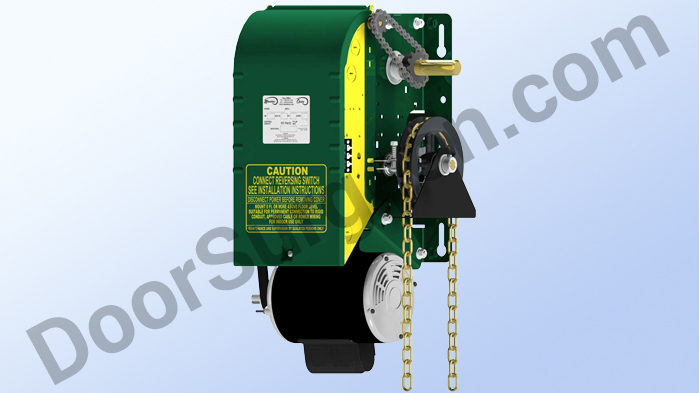

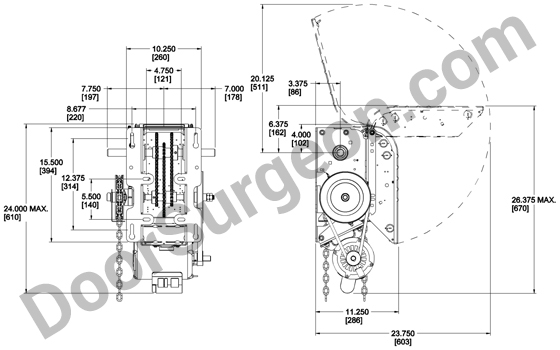

OPERA H
New 1/2 HP Commercial / Industrial Heavy Duty Jack Shaft Overhead Door Opener Supplied and Installed in Sherwood Park

Standard Features
Commercial door openers that get the job done. This Opera H 1/2 HP over head door operator is made to last.
Sherwood Park Commercial Door Opener Motor
60Hz high starting torque, continuous-duty, single phase capacitor start or 3 phase motor, open drip proof, protected againsr overload. Also available with 50Hz 220V 1 phase and 380V 3 phase motor.
Reduction
First step in reduction 5L/B V-belt drive, additional steps by chain and sprockets. Input shaft is 5/8", supported by precision ball bearings. Output shaft is 1" with 1/4" keyway, supported by cast iron flanged pillow block bearings. Output shaft speed: 41 rpm.
Clutch
Friction type, positioned on input shaft, easily adjustable from outside.
Drive
#50 roller chain with a 50B12 sprocket for the operator drive shaft. Door sprocket selected for a door travel of 6"/s to 12"/s.
Brake
Mechanical Brake.
Commercial Door Opener Manual Operation Sherwood Park
Hoist-a-matic self-engaging hoise (floor level engagement device is not required to operate) for manual chain operation. An electrical interlock automatically disonnects power to the motor operator when the chain hoist is engaged. Hoist on right is standard.
Electrical Enclosure
All electrical components are in a Nema 1 enclosure. Hinged electrical enclosure cover.
Limit System
Rotary-type oil-imregnated steel cams, commercial grade switches. Limit shaft is supported by self-lubricating bronze bushings for increased precision. Remains in time when there is a manual operation or after the motor has been removed.
Accu-cam Feature
Precise and quick one-handed adjustment of the limits.
Sherwood Park Commercial Door Opener Corrosion Protection
Frame and control enclosure protected by baked on, long lasting enamel finish. Polymer control box cover. All shafts protected by yellow chromate coating.
Commercial Door Opener Mounting Sherwood Park
Wall, hood, or shelf mounted on the right or left side of the door.
ECB Units (BOARD 070) (OE):
24VDC relaying circuit with a 40VA class II transformer, non-volatile memory. Features available:
- 1.5s delay on reverse
- Programmable maximum run timer
- Mid-stop
- Timer to close (suspension possible from floor level)
- Independent input loop terminal
- Advanced close system
- Test buttons
- Reverse wiring detection
- Door lock sensor
Operating mode selectable on site: C2, B2, D1, E2, T or TS
Contactor Units (OO):
24VAC control circuit, 40VA class II transformer, fuse protected on output, heavy-duty across-the-line linear reversing contractor with mechanical interlock.
Sherwood Park Commercial Door Opener Control Accessories
Angled terminal strip allows for the connection of 3-button staions (one supplied with the operator), non-monitored sensing edges, non-monitored photo cells, one push-button radio control (external strip), ceiling pull switches, key switches, loop detectors, external interlocks, plug-in radio card and universal auxiliary output module. 2A fuse protected 24VAC output is available for accessory power supply. NEMA 4/12 for NEMA 4X protected monitored photo cells upgrade available.
Environmental Modifications
NEMA 4/12 and NEMA 4X enclosures. For NEMA 7/9 consult Door Surgeon at 780-448-9498.
Commercial Door Opener Mechanical Accessories Sherwood Park
Wall or hood mounting bracket, chain spreader, etc. For more options contact Door Surgeon at 780-448-9498.

Cycles | Ideal For | Clearance / Side Room Required |
25 cycles / hour | Standard Lift | 15" |
(100 cycles / day) | (380mm) |
Operator Range and Current Consumption (Amp)
Horse Power | 115V 1 HP |
230V 1 HP |
208/230V 3 HP |
460V 3 HP |
575V 3 HP |
1/2 | 8.0 | 4.0 | 2.1 | 1.0 | 8.0 |
3/4 | 11.2 | 5.6 | 3.2 | 1.5 | 1.2 |

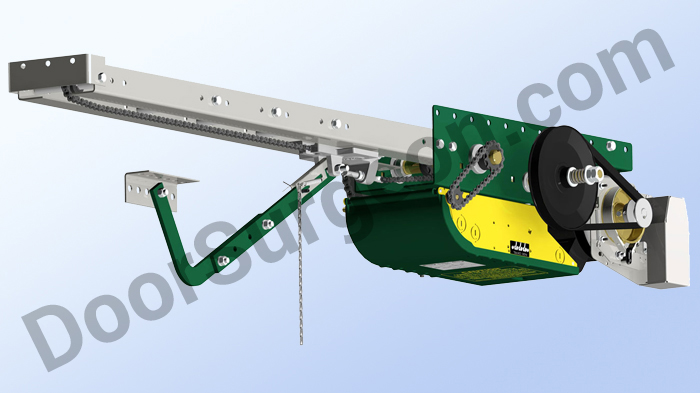

OTBH
New 3/4 HP Commercial / Industrial Heavy Duty Trolley Overhead Door Opener w/ Solenoid Brake Supplied and Installed in Sherwood Park

Standard Features
The OTBH 3/4 HP garage door opener shows its ability to deal with heavy loads and extreme climates very well.
Commercial Door Opener Motor Sherwood Park
60Hz high starting torque, continuous-duty, single phase capacitor start or 3 phase motor, open drip proof, protected againsr overload. Also available with 50Hz 220V 1 phase and 380V 3 phase motor.
Reduction
First step in reduction 5L/B V-belt drive, additional step by #41 chain and sprockets. Input shaft is 5/8", supported by precision ball bearings. Output shaft is 1" supported by ball bearings. Output shaft speed: 120 rpm for a door travel of 12"/s.
Clutch
Friction type, positioned on input shaft, easily adjustable from outside.
Drive & Trolley Assembly
#48 (410) full roller chain drive on 1/2HP and 341 full roller chain drive on 3/4, 1HP. Dual, 12 gauge, pre-drilled galvanized tracks provided for doors up to 12' in height standard. Additional track lengths are available (max door height acceptable for the operator limit system is 30'). Track spacers 3/4" steel shaft. Trolley made of cast aluminum alloy with chain tension adjustment device.
Brake
Electrically activated drum-band type solenoid brake.
Sherwood Park Commercial Door Opener Manual Operation
Quick release disconnect arm for manual push-up operation.
Electrical Enclosure
All electrical components are in a Nema 1 enclosure. Hinged electrical enclosure cover.
Limit System
Rotary-type oil-imregnated steel cams, commercial grade switches. Limit shaft is supported by self-lubricating bronze bushings for increased precision. Remains in time when there is a manual operation or after the motor has been removed.
Accu-cam Feature
Precise and quick one-handed adjustment of the limits.
Commercial Door Opener Corrosion Protection Sherwood Park
Frame and control enclosure protected by baked on, long lasting enamel finish. Polymer control box cover. All shafts protected by yellow chromate coating.
Sherwood Park Commercial Door Opener Mounting (Low Headroom Design)
Ceiling-mounted with only 6.25" headroom clearance required below the tracks.
ECB Units (BOARD 070) (OE):
24VDC relaying circuit with a 40VA class II transformer, non-volatile memory. Features available:
- 1.5s delay on reverse
- Programmable maximum run timer
- Mid-stop
- Timer to close (suspension possible from floor level)
- Independent input loop terminal
- Advanced close system
- Test buttons
- Reverse wiring detection
- Door lock sensor
Operating mode selectable on site: C2, B2, D1, E2, T or TS
Contactor Units (OO):
24VAC control circuit, 40VA class II transformer, fuse protected on output, heavy-duty across-the-line linear reversing contractor with mechanical interlock.
Commercial Door Opener Control Accessories Sherwood Park
Angled terminal strip allows for the connection of 3-button staions (one supplied with the operator), non-monitored sensing edges, non-monitored photo cells, one push-button radio control (external strip), ceiling pull switches, key switches, loop detectors, external interlocks, plug-in radio card and universal auxiliary output module. 2A fuse protected 24VAC output is available for accessory power supply. NEMA 4/12 for NEMA 4X protected monitored photo cells upgrade available.
Environmental Modifications
NEMA 4/12 and NEMA 4X enclosures. For NEMA 7/9 consult Door Surgeon at 780-448-9498.
Sherwood Park Commercial Door Opener Mechanical Accessories
Wall or hood mounting bracket, chain spreader, etc. For more options contact Door Surgeon at 780-448-9498.

Cycles | Ideal For | Back Room Door Height | Head Room for Tracks |
25 cycles / hour | Industrial Standard Lift | + 4'5" | 4" |
(80 cycles / day) | (1350mm) | 102mm |
Operator Range and Current Consumption (Amp)
Horse Power | 115V 1 HP |
230V 1 HP |
208/230V 3 HP |
460V 3 HP |
575V 3 HP |
1/2 | 8.0 | 4.0 | 2.1 | 1.0 | 8.0 |
3/4 | 11.2 | 5.6 | 3.2 | 1.5 | 1.2 |
OTH
New 1/2 HP Commercial / Industrial Heavy Duty Trolley Overhead Door Opener Supplied and Installed in Sherwood Park

Standard Features
The OTH is a heavy-duty low headroom trolley operator designed for use on industrial standard lift sectional doors.
Sherwood Park Commercial Door Opener Motor
60Hz high starting torque, continuous-duty, single phase capacitor start or 3 phase motor, open drip proof, protected againsr overload. Also available with 50Hz 220V 1 phase and 380V 3 phase motor.
Reduction
First step in reduction 5L/B V-belt drive, additional step by #41 chain and sprockets. Input shaft is 5/8", supported by precision ball bearings. Output shaft is 1" supported by ball bearings. Output shaft speed: 120 rpm for a door travel of 12"/s.
Clutch
Friction type, positioned on input shaft, easily adjustable from outside.
Drive & Trolley Assembly
#48 (410) full roller chain drive on 1/2HP and 341 full roller chain drive on 3/4, 1HP. Dual, 12 gauge, pre-drilled galvanized tracks provided for doors up to 12' in height standard. Additional track lengths are available (max door height acceptable for the operator limit system is 30'). Track spacers 3/4" steel shaft. Trolley made of cast aluminum alloy with chain tension adjustment device.
Commercial Door Opener Manual Operation Sherwood Park
Quick release disconnect arm for manual push-up operation.
Electrical Enclosure
All electrical components are in a Nema 1 enclosure. Hinged electrical enclosure cover.
Limit System
Rotary-type oil-imregnated steel cams, commercial grade switches. Limit shaft is supported by self-lubricating bronze bushings for increased precision. Remains in time when there is a manual operation or after the motor has been removed.
Accu-cam Feature
Precise and quick one-handed adjustment of the limits.
Sherwood Park Commercial Door Opener Corrosion Protection
Frame and control enclosure protected by baked on, long lasting enamel finish. Polymer control box cover. All shafts protected by yellow chromate coating.
Commercial Door Opener Mounting (Low Headroom Design) Sherwood Park
Ceiling-mounted with only 6.25" headroom clearance required below the tracks.
ECB Units (BOARD 070) (OE):
24VDC relaying circuit with a 40VA class II transformer, non-volatile memory. Features available:
- 1.5s delay on reverse
- Programmable maximum run timer
- Mid-stop
- Timer to close (suspension possible from floor level)
- Independent input loop terminal
- Advanced close system
- Test buttons
- Reverse wiring detection
- Door lock sensor
Operating mode selectable on site: C2, B2, D1, E2, T or TS
Contactor Units (OO):
24VAC control circuit, 40VA class II transformer, fuse protected on output, heavy-duty across-the-line linear reversing contractor with mechanical interlock.
Sherwood Park Commercial Door Opener Control Accessories
Angled terminal strip allows for the connection of 3-button staions (one supplied with the operator), non-monitored sensing edges, non-monitored photo cells, one push-button radio control (external strip), ceiling pull switches, key switches, loop detectors, external interlocks, plug-in radio card and universal auxiliary output module. 2A fuse protected 24VAC output is available for accessory power supply. NEMA 4/12 for NEMA 4X protected monitored photo cells upgrade available.
Environmental Modifications
NEMA 4/12 and NEMA 4X enclosures. For NEMA 7/9 consult Door Surgeon at 780-448-9498.
Commercial Door Opener Mechanical Accessories Sherwood Park
- Dual trolely drive
- Trolley hoist
- Double V-Belt
- Cast iron flanged pillow block bearings on input/output shafts
- Very heavy duty front idler
- Minidepth
- For more accessories, contact Door Surgeon at 780-448-9498.

Cycles | Ideal For | Back Room Door Height | Head Room for Tracks |
25 cycles / hour | Industrial Standard Lift | + 4'5" | 4" |
(80 cycles / day) | (1350mm) | 102mm |
Operator Range and Current Consumption (Amp)
Horse Power | 115V 1 HP |
230V 1 HP |
208/230V 3 HP |
460V 3 HP |
575V 3 HP |
1/2 | 8.0 | 4.0 | 2.1 | 1.0 | 8.0 |
3/4 | 11.2 | 5.6 | 3.2 | 1.5 | 1.2 |
LiftMaster New Overhead Commercial Garage Door Openers Supplied & Installed in Sherwood Park:
New H - Hoist Operator Logic 5.0 Supplied and Installed in Sherwood Park
Industrial Opener Available in 1/3, 1/2, 3/4, and 1 HP

Commercial/Industrial duty
The Hoist Operator - Logic 5.0 - is optimal for industrial applications with larger sectional overhead doors. Rated duty cycle: 25 per hour; Up to 90 cycles per day. Side mounts to the wall for vertical or high-lift doors. Rolling doors and grilles. Wall or hood mounts.
Features -
Business Connectivity:
Monitor and Control myQ® technology enables monitoring and control of the operators through a mobile app.
Grid View to efficiently monitor all the doors in the facility.
Real-time alerts Indicate the status of doors via email or push notifications. (connectivity requires purchase of internet gateway (828LM) or MyQ Home Bridge (819LMB), sold separately.)
Business Safety and Security:
Safety Standards Meets UL 325 safety standards.
Commercial Safety Sensors Protect people and vehicles with safety sensors and accessories that stop the door from closing on obstructions.
Timer-to-Close Integrated timer-to-close programmable from 5 to 60 seconds in 5-second increments. Allows for timed automatic door closure after the door reaches the full open position.
Security+ 2.0® Safeguard facility access with Security + 2.0 technology, opening for registered devices only.
Commercial Power:
Multiple Power Options Available in 1/3, 1/2, 3/4, and 1 HP.
Dual Voltage Connections Single-phase: 115V and 230V 3-phase: 208V, 230V and 460 Discrete model: 575V.
Customizable Voltage To meet job requirements
Unit Includes:

02-102L 3-button indoor surface mount station (NEMA 1).
CPS-U Commercial photo eyes.
H - Hoist Operator Standard Specifications

New APT - Apartment Trolley Operator Logic 5.0 Supplied and Installed in Sherwood Park
1/2 HP Industrial Opener

Commercial/Industrial duty
Sherwood Park Commercial Door Opener Apartment Trolley Operator (APT) - Logic 5.0 For use on high-cycle, sectional overhead apartment doors. Rated duty cycle: over 100 cycles per day rental & retail environments. Resilient-mount motor ensures quiet operation. Quick disconnect trolley with auto-reconnects saves time and eases reconnection.
Features -
Business Connectivity:
Monitor and Control myQ® technology enables monitoring and control of the operators through a mobile app.
Real-time alerts Indicate the status of doors via email or push notifications. (connectivity requires purchase of internet gateway (828LM) or MyQ Home Bridge (819LMB), sold separately.)
Business Safety and Security:
Safety Standards Meets UL 325 safety standards.
Commercial Safety Sensors Protect people and vehicles with safety sensors and accessories that stop the door from closing on obstructions.
Timer-to-Close Integrated timer-to-close programmable from 5 to 60 seconds in 5-second increments. Allows for timed automatic door closure after the door reaches the full open position.
Security+ 2.0® Safeguard facility access with Security + 2.0 technology, opening for registered devices only.
Commercial Power:
Available in: 1/2 HP.
Dual Voltage Connections Single-phase: 115V and 230V.
Customizable Voltage To meet job requirements
Unit Includes:

02-102L 3-button indoor surface mount station (NEMA 1).
CPS-U Commercial photo eyes.
APT - Apartment Trolley Operator Standard Specifications

Doorlec New Overhead Commercial Garage Door Openers Supplied & Installed in Sherwood Park:
New EHJ Jackshaft-Type Electric Commercial Overhead Door Operator Supplied and Installed in Sherwood Park
Industrial Opener Available in 1/3, 1/2, 3/4, and 1 HP

Commercial/Industrial duty
EHJ Jackshaft type electric operator has been developed primarily as an operating mechanism for commercial-industrial door equipped with head shaft. Naturally doors of either sectional overhead, vertical lift, hy-lift or rolling steel construction are ideally suited for operation by this unit. Many othertypes of doors can be equipped with this operator, providing the door has a shaft as the basic driving element.
Features -
Three Button Control:
Momentary contact type for up, down and stop. Operator may be stopped in any position and door moved up or down from that position. Operator can be wired for constant pressure down when specified. Control circuit 24V. A.C. for user's protection.
Adjustable Automatic Friction Clutch:
To protect door and operator in case of obstruction.
Reduction:
Rugged power unit of this operator utilizes a large size V belt (5L) and heavy pulleys for primary reduction, roller chain and steel sprockets for secondary reduction to the output drive shaft. Pulleys and sprockets are mounted on 1" (2.5cm) C.R. steel shaft rotating on high speed, precision, self-aligning pillow block bearings for efficient long lasting, hard working, high traffic operation. Door operating speed approx. 1.0ft. (.3m) per second.
Heavy Duty Solenoid Brake:
Made from one 4" (10cm) diameter aluminium alloy disc mounted on keyed motor shaft, brake lined shoes with 360o exterior compressing force, throw spring loaded mechanism. Brake disc stops door when electro-magnetic solenoid switch is released. Mounted on heavy duty steel plates protected in 14 ga. steel enclosure. Brake mechanism is self-adjusting type.
Limit Switches:
Screw type friction free oilite bronze cams and precision micro switches, for both up and down automatic stopping of door position, easily adjustable without tools.
Reversing Contactor:
Heavy duty type STRUTHERS-DUNN or equal.
Safety Interlock:
Electrical interlock switch automatically cuts power off on operator when chain hoist is in operation.
Sherwood Park Commercial Door Opener Universal Mounting:
Right or left side.
Commercial Door Opener Manual Overload Relay:
For overload and under voltage protection. (Can be reset manually).
Commercial Door Opener Motor Sherwood Park:
1/3 H.P. (.33hp), 1/2 H.P. (.5hp), or 3/4 H.P. (.75hp), or 1 H.P., 115V. or 230V., 1 phase 208V., 440V. or 550V., 3 phase. (1 H.P. not recommended in single phase motors).
Safety Electrical Interlock:
When chain hoist is in operation a normally off toggle switch cuts the power line off operator automatically. This safety electrical interlock will protect operator and door when is restored and push button station is pressed accidentally.
Sherwood Park Commercial Door Opener Emergency Chain Hoist:
Combined with a floor operated disconnect which when pulled will disconnect the electric driven solenoid brakes and engage the chain hoist for manual operation in the event of power failure, without having to remove the main drive chain. Assembly consists of one grooved aluminium pocket wheel, lever arm, one coupling, 1/8" (.31cm) D. pull cable, 7/16" (11.1mm) D. bright polish chain, wall chain keeper and disconnect arm.
Doorlec - EHJ Jackshaft-Type Spec Drawing

New ETH Commercial Overhead Door Operator Supplied and Installed in Sherwood Park
Industrial Opener Available in 1/3, 1/2, and 3/4 HP

Commercial/Industrial duty
Features -
Three Button Control:
Momentary contact type for up, down and stop. Operator may be stopped in any position and door moved up or down from that position. Operator can be wired for constant pressure down when specified. Control circuit 24V. A.C. for user's protection. Adjustable automatic slipping clutch: Will protect door and operator in case of obstruction.
Limit Switches:
Screw type with oilite bronze cams and precision micro switches for both up and down automatic stopping of door positions, easily adjustable without tools.
Reduction System:
The power unit of this operator utilizes a large size V belt (5L) and heavy pulleys for primary reduction, roller chain and steel sprocket for secondary reduction to the output drive shaft. Mounted on 1" (2.5cm) C.R. steel shaft rotating on high speed self-lubricating, self-aligning pillow block bearings for efficient long lasting, hard working, high traffic operation. Door operating speed approx. 1.0ft. (.3m) per second.
Dual Trolley:
Cast aluminium alloy chain driven carriage, slides on dual heavy steel angle tracks with full No. 41 push and pull roller chain for smooth and quiet operation. In addition a roller spreader is provided to support trolley and prevent chain from rubbing.
Reversing Contactor:
Heavy duty type STRUTHERS-DUNN or equal.
Quick Release Door Arm:
Quickly disengages operator from door (without tools) for manual operation in the event of power failure. 1" x 3/8" (2.5cm x .93cm) H.R. steel bar bent to 90o adjustable to suit headroom with spring loaded hook, attached to aluminium door bracket. This arm quickly disengages operator trolley from door without tools, for manual operation in the event of power failure.
Commercial Door Opener Manual Overload Relay Sherwood Park:
For overload and under voltage protection. (Can be reset manually).
Sherwood Park Commercial Door Opener Motor:
1/3 H.P. (.33hp), 1/2 H.P. (.5hp), or 3/4 H.P. (.75hp), 115V., or 230V., 1 phase - 208V., 440V. or 550V., 3 phase. (1 H.P. not recommended on single phase motors).
Commercial Door Opener Motor control Sherwood Park:
Heavy duty reversing contactor STRUTHERS-DUNN or equal, two sets of three pole contactors on a common frame, mechanically interlocked to prevent simultaneous closure, clapper-type armature with three point suspension, auxiliary contacts DPDT on each armature, coils 24V. A.C. Amps resistive 120V. A.C. 15 amps, 240V. A.C. 10 amps, 550V. A.C. 5 amps. Motor 1 H.P. maximum. Terminals .250" (.625cm) quick connect, mechanical life 10 million cycles.
Doorlec - Spec Drawing

Follow these links for related pages

Commercial Garage Door Service Sherwood Park

New Commercial Garage Doors Sherwood Park
Door Surgeon Mobile Commercial Overhead
Garage Door Opener Repair Servicing Sherwood Park
Mobile Commercial Garage Door Opener Repair Service Sherwood Park
Door Surgeon Edmonton South Side Door Repair,
Sales, Service and Parts Centre
Door Repair Parts, sales & service shop South Edmonton 5738 75 Street
Click the link to find a location or service provider nearest you:
JJ - Door Surgeon's Operations Manager:
Commercial Overhead Garage Door Opener Fix, Adjust, Repair or New Opener Serviceman

JJ started with Door Surgeon in 2008 and has worked reliably. He came to Door Surgeon with a variety of overhead garage door installation skills and grew his abilities by taking on new challenges in commercial overhead garage door opener repairs. JJ is the go to man for all that is commercial overhead garage doors opener repair, whether it's new overhead garage doors openers, parts for overhead garage doors or overhead garage door repairs
While JJ does spend a small amount of time in the shop helping customers, supervising and training his crew and providing budget quotes he also spends a good deal of time out in the field renovating and repairing commercial overhead garage door openers. Often JJ has been the expert to correct other's problems and or rebuild an entire face of a commercial overhead garage door so that the new door will work properly and safely when installed.
It's time to get Door Surgeon's commercial overhead garage door opener fix, adjust, repair or new opener installation team working for you.
Affiliates & Memberships
